Description

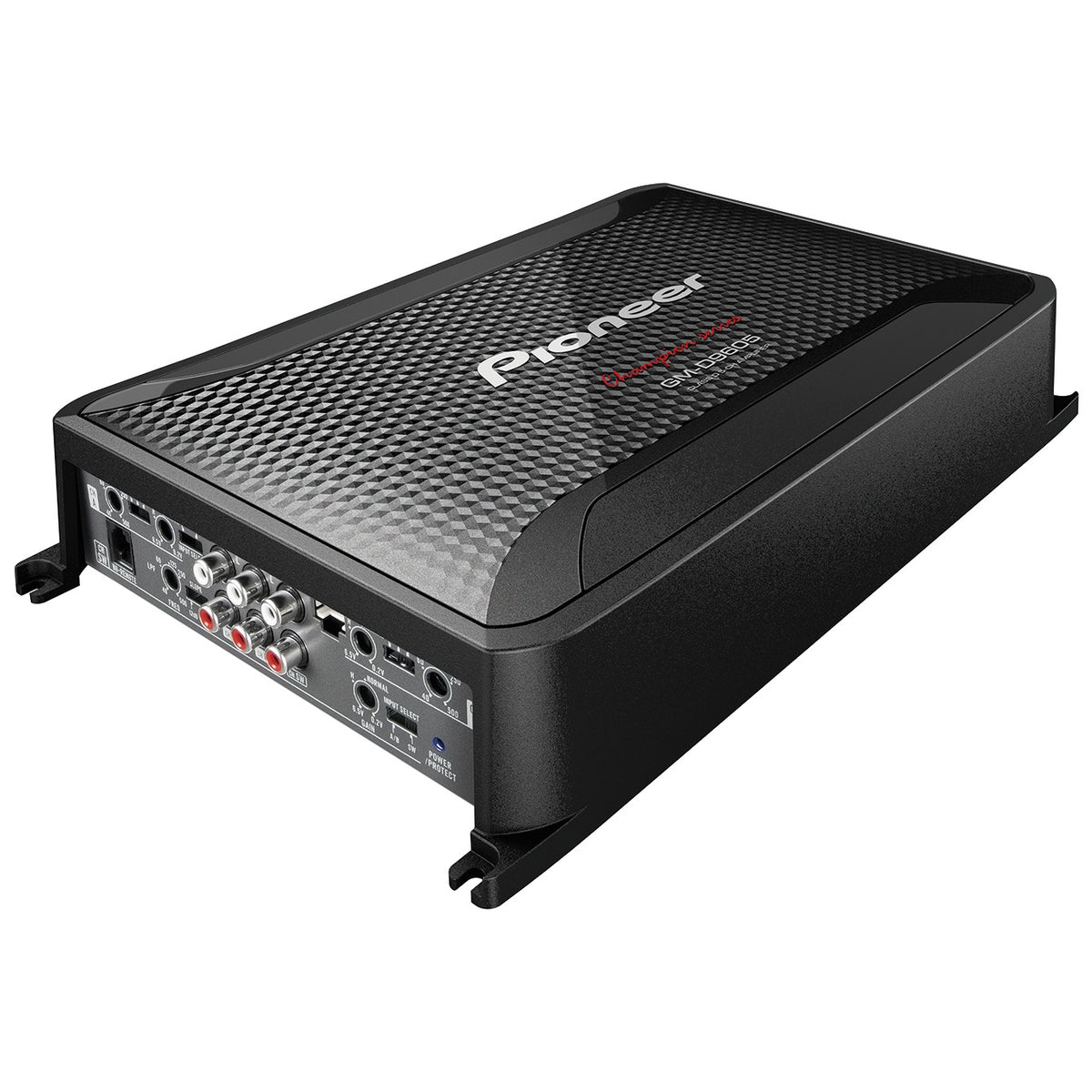

The Pioneer GM-D9605 is a Class-FD 5-channel bridgeable car amplifier with a bass boost remote. Its versatile 5-channel capability features a dedicated subwoofer output for ample power to drive strong bass. Very efficient and compact, the Class-D amp is capable of amazingly high power output.
Key Features
- Bass Boost Remote: Every new Class-D amplifier has a Bass Boost Remote Controller for optimal bass level adjustment according to listening preferences and music characteristics. The Bass Boost Remote adjusts bass level from 0 to 18 dB by wired controller.
- Speaker Level Input: Allows you to connect the amplifier to your source without RCA-type inputs and without the need for adapters.
- RCA Input: When connected to an OEM receiver or a receiver without RCA input using speaker wire, the amplifier is turned on at the same time as the receiver. Pioneer’s amplifiers automatically detect an input signal and select an input signal mode between the RCA level and the speaker level.
- Variable LPF: Allows adjustment of the Low-Pass Filter according to your listening preference. Variable LPF has two types of slopes selectable by subwoofer characteristics and listening preferences.
- Variable HPF: Adjust your High-Pass Filter frequency for greater audio flexibility.
- Class FD: Internal 100W x 4-Ch amplifier with Class-FD Configuration including special circuit board made for quality sound and component for stable output brings powerful sound reproduction and music playback.
- Flexible Installation and Connectivity: A-Channel, B-Channel and Subwoofer-Channel outputs can be matched to one, two or three preouts of a receiver; excellent for speaker line output connections and expanding a factory-equipped subwoofer-less car audio system into a 5-channel output system. Equipped with A/B SW input select and dedicated large block terminals to drive a subwoofer.
Technical Specifications
- Maximum Power Output: 150 W x 4 (A/B ch) / 700 W x 1 (Subwoofer Ch)
- Minimal Power Output: 75 W x 4 (A/B ch) / 350 W x 1 (Subwoofer Ch)
- Frequency Response: 10 Hz to 50 kHz (A-/B-Ch.) / 10 Hz to 500 Hz (Subwoofer-Ch.)
- Impedance: 4 ohm (2 ohm to 8 ohm allowable)
- Total Harmonic Distortion (THD): <0.05% (A-/B-Ch.: 1 kHz / Subwoofer-Ch.: 100 Hz)
- S/N Ratio: >94 dB
- Bass Boost: Yes
- Channels: 5 (A-Channel, B-Channel, Subwoofer-Channel)
- Dimensions (W x H x D): 315 mm x 60 mm x 200 mm
